1.74 بوصة 240x128 وحدة TFT Transferive

This compact 1.74-inch TFT module features a sharp 240×128 resolution with transflective technology, ensuring excellent visibility in both bright sunlight and low-light conditions. Ideal for portable devices, wearables, and industrial instruments, it offers low power consumption, wide viewing angles, and a lightweight design.. Whether for smartwatches, handheld meters, or IoT devices, this display delivers crisp, energy-efficient performance.

Key Features:

· 1.74-inch transflective LCD

· 240×128 resolution

· Sunlight-readable & low-power

· Compact & lightweight design

Perfect for small yet high-performance displays!

General Specifications

VXT174MYKH-01 1.74 inch 240x128 Transflective TFT Module is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC,FPC, a back light unit. The 1.74¢¢ display area contains 240 x (RGB) x 128 pixels and can display up to 262K colors. This product accords with ROHS environmental criterion..

Note 1: Color tune is slightly changed by temperature and driving voltage.

Note 2: Without FPC and Solder.

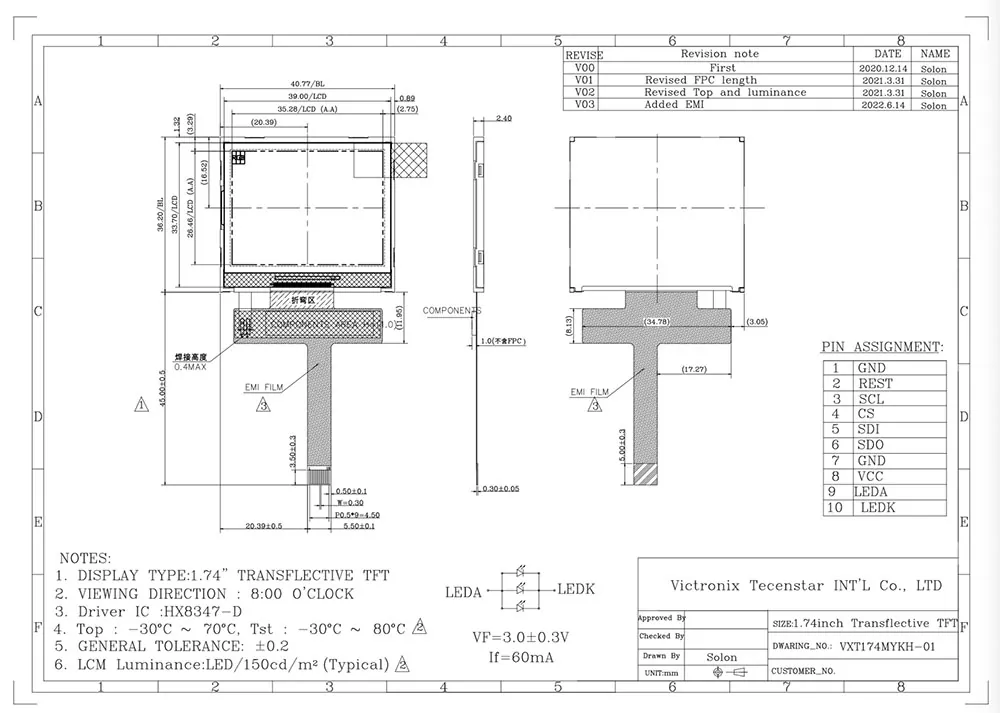

Outline.Drawing
