4.3 '' 480*272 وحدة درجة حرارة واسعة

In the age of intelligence, TFT MODULE helps us to present the required data in the form of images. The quality of the TFT module has a critical impact on its application. What are the advantages of the Victronix 4.3'' 480*272 Wide Temperature TFT Module? At first, it provides customers with a premium display with a 480×272 resolution with 16.7M colors, 80° viewing angle (all directions), 550 cd/m² typical brightness, and 800:1 contrast ratio. Secondly, it passes rigorous reliability tests (ESD protection, vibration/shock resistance, extended thermal cycling) to operate in extreme temperatures from -30°C to +85°C. Besides, it not only features a 24-bit RGB parallel interface with SYNC/DE mode support but also has a 10-die white LED array backlight whose lifespan is from 30,000 to 50,000 hours (50% brightness retention). These make it more suitable for harsh industrial and outdoor settings.

This Victronix 4.3 inch TFT module is small enough to fit in a variety of applications, including handheld devices, automotive displays, and industrial control systems. Despite its small size, the module provides a high-quality display that is suitable for a range of applications.

General Specifications

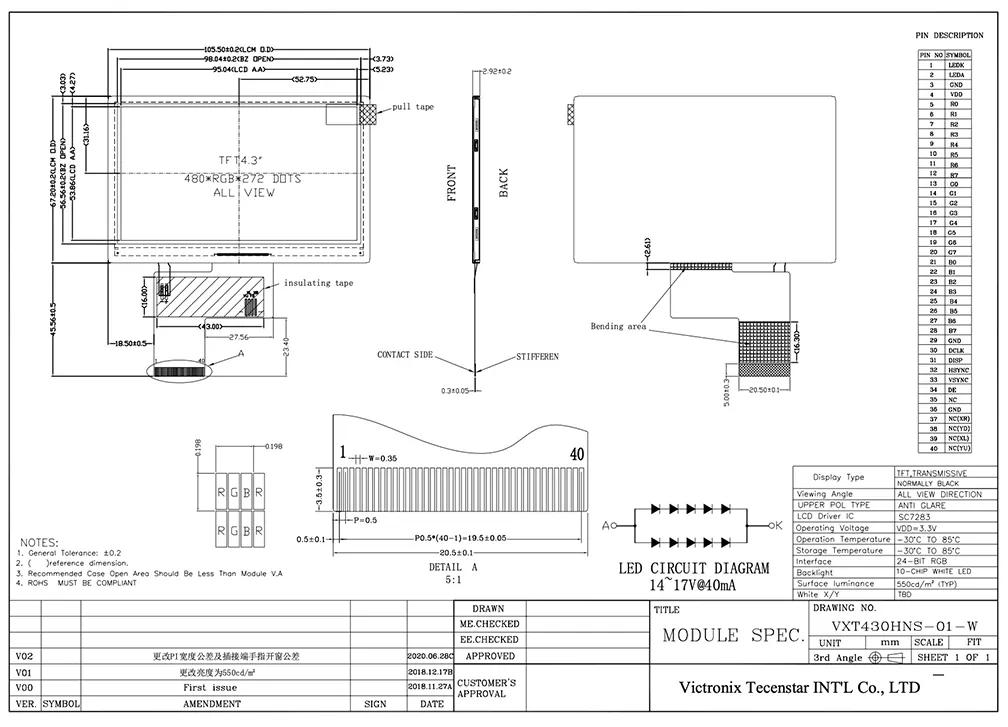

Outline Drawing
